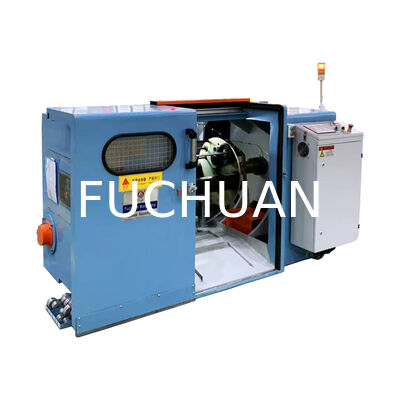

Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires

Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires

Image Grand :  Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires

Détails sur le produit:
Lieu d'origine: Chine Kunshan
Nom de marque: FUCHUAN
Certification: CE
Numéro de modèle: FC-250B
Conditions de paiement et expédition:
Quantité de commande min: 1 ensemble
Prix: negotiable
Détails d'emballage: simplement emballé
Délai de livraison: 45 jours
Conditions de paiement: T/T, LC
Capacité d'approvisionnement: 200 sept / mois
Contact

Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires

description de
Spécifications de la bobine: φ200mm-φ250 Tension: 380V
Disque de fil de cuivre: 0,03 mm-0,18 mm Pas: peut être réglable
Vitesse de rotation maximale: 800(1600tpm) Couleur: bleu ciel / vert pomme
Finition: Tremper et broyer Mode de fonctionnement: Fonctionnement de l'écran tactile
Autre nom: Poinçonneuse en cuivre Prenez la bobine: Diamètre 250 mm
Mettre en évidence:

ultra fine wire twisting machine

,

copper wire bunching machine for building wires

,

stranding cable machine with warranty

Basic Info.

Model NO.
FC-250B
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Model No.
FC-250b
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
4000rpm
Power
4kw
Transport Package
Wooden Box
Specification
1000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description


Series of Model B Ultra Fine Wire High Speed Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing
projects. Designed with advanced technology and robust materials, this bunching machine ensures high
speed, smooth operation. It is suitable for stranding of extremely ultra fine conductors (alloy wire, tin-plated
wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices,
mobile phones, laptops, etc.
Specification
Technical Specifications
(Custom configurations available upon request.)
Model
FC-250B
FC-300B
FC-400B
FC-450B
Wire dia. (mm)
Φ0.03-0.18
Φ0.04-0.28
Φ0.05-0.32
Φ0.05-0.32
Cross section (mm2 )
0.0049-0.3
0.0088-0.45
0.0137-1.0
0.0137-1.0
Pitch (mm)
0.8-10.8
1.6-21.6
3.1-33.3
3.1-33.3
Take-up Spool size (mm)
Φ200-Φ250
Φ250-Φ300
Φ300-Φ400
Φ300-Φ450
Main motor power
4.0KW
4.0KW
4.0KW
4.0KW
Inverter Power
3.7KW
3.7KW
3.7KW
3.7KW
Max speed (rpm)
4000
3500
3000
3000
Stranding direction
S/Z
S/Z
S/Z
S/Z
Magnetic power clutch
0.3kgf
0.6kgf
0.6kgf
0.6kgf
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 0



Features
1. Ethernet port is reserved for IoT access, which can
display the speed, stranding details, line speed,
equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly
ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing
width and lay length is adjustable.

Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 1
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 2
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 3

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team
can provide tailored designs to meet specific project requirements.
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 4
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 5
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over
20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed
by R&D innovation and strict quality control.
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 6
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 7
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Single twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
Fuchuan Ultra Fine Wire Twisting Bunching Buncher Stranding Cable Machine Wire Cable Making Machine for Building Wires 8
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
